Extractive CEMs

Continuous Emissions Monitoring FTIR

atmosFIR CEM

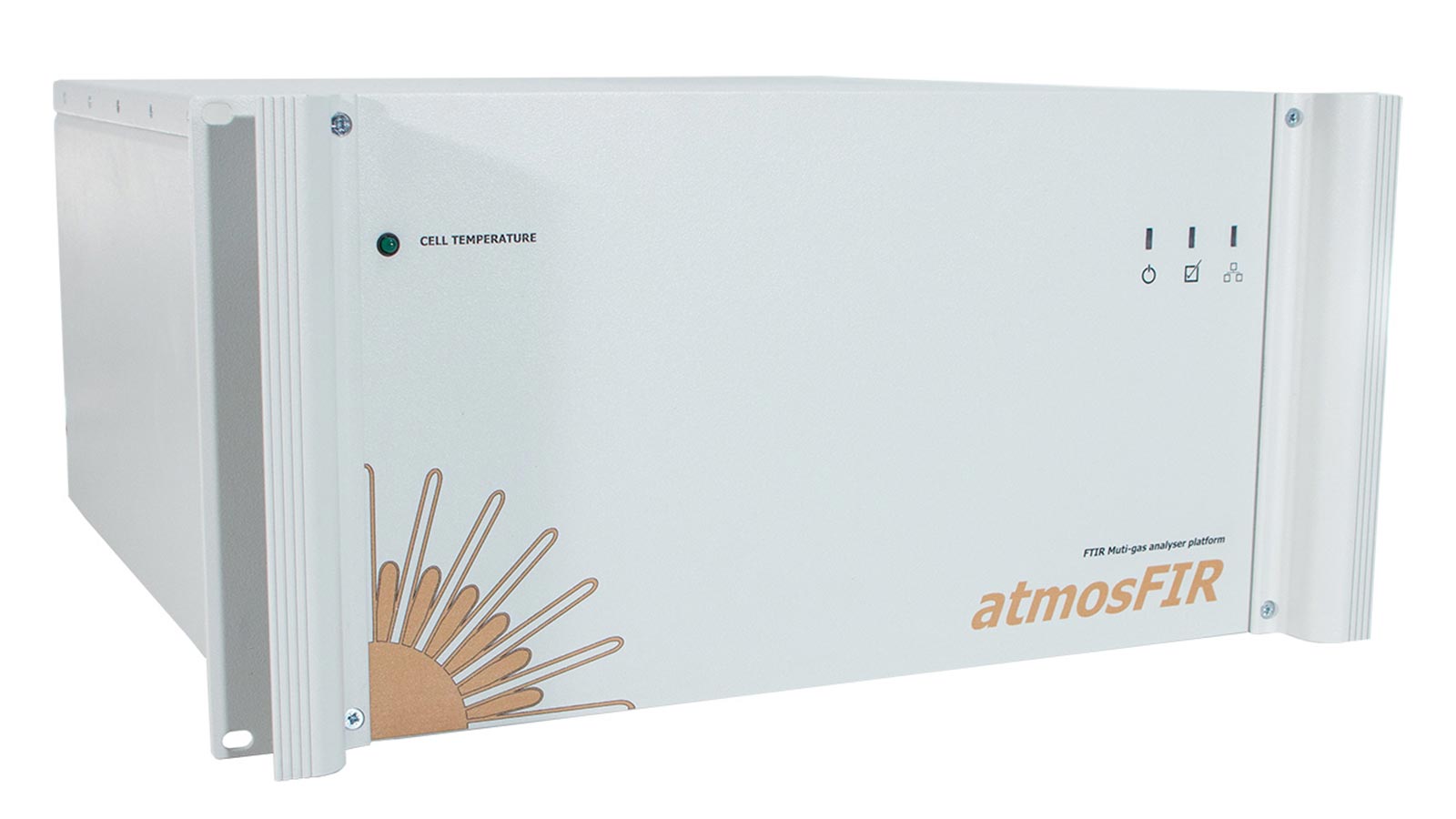

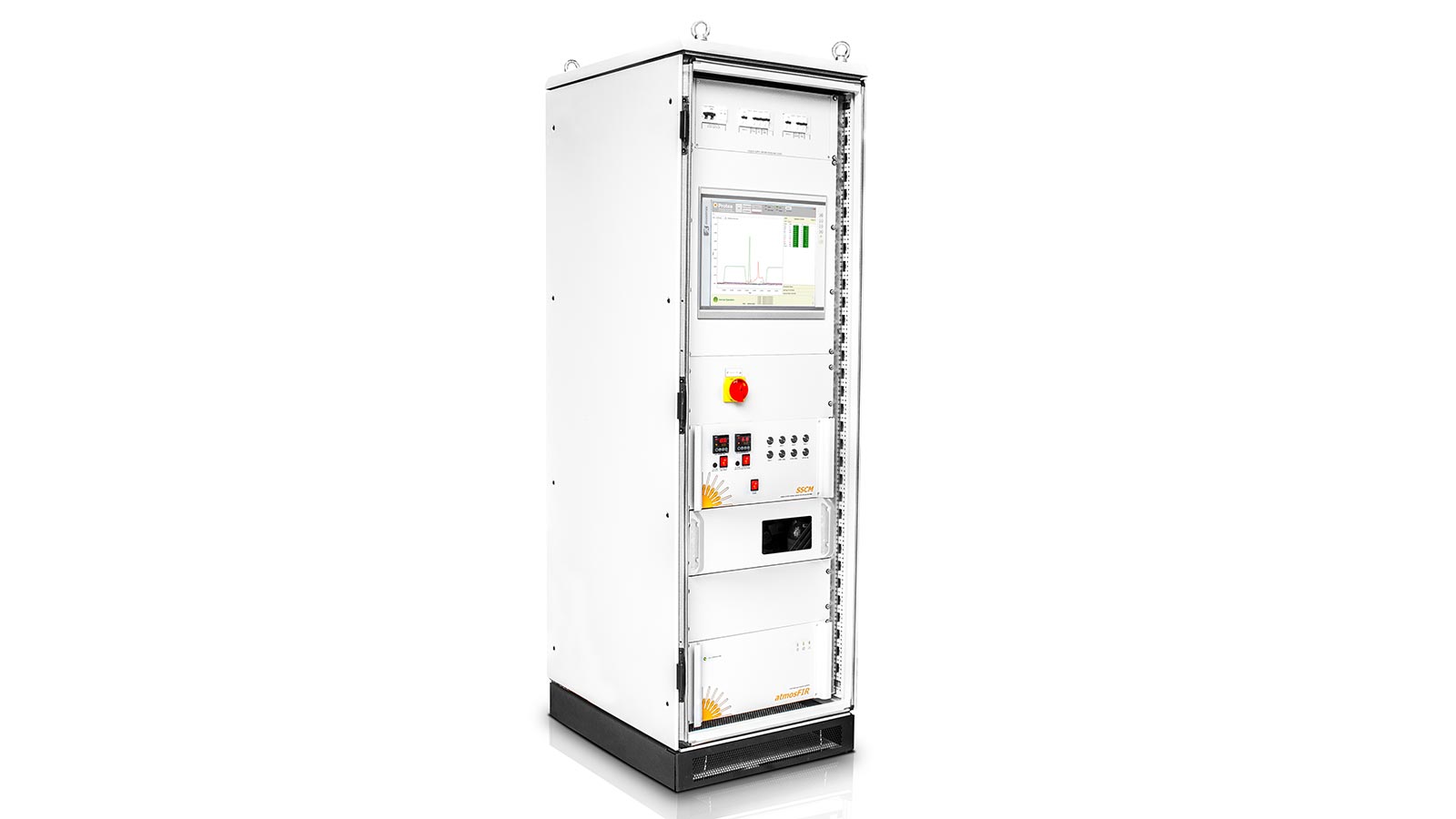

atmosFIR CEM is a complete emissions monitoring system incorporating the atmosFIR 19” FTIR analyser. As completely hot and wet emissions measurement, atmosFIR CEM is ideal for complete measurement of multiple gases from applications such as incineration and power. A standard gas suite of NO, NO2, N2O, SO2, NH3, HCl, HF, CH4, O2, CO2 and H2O is provided, but with the powerful FTIR analyser, further gases can be added easily in software.

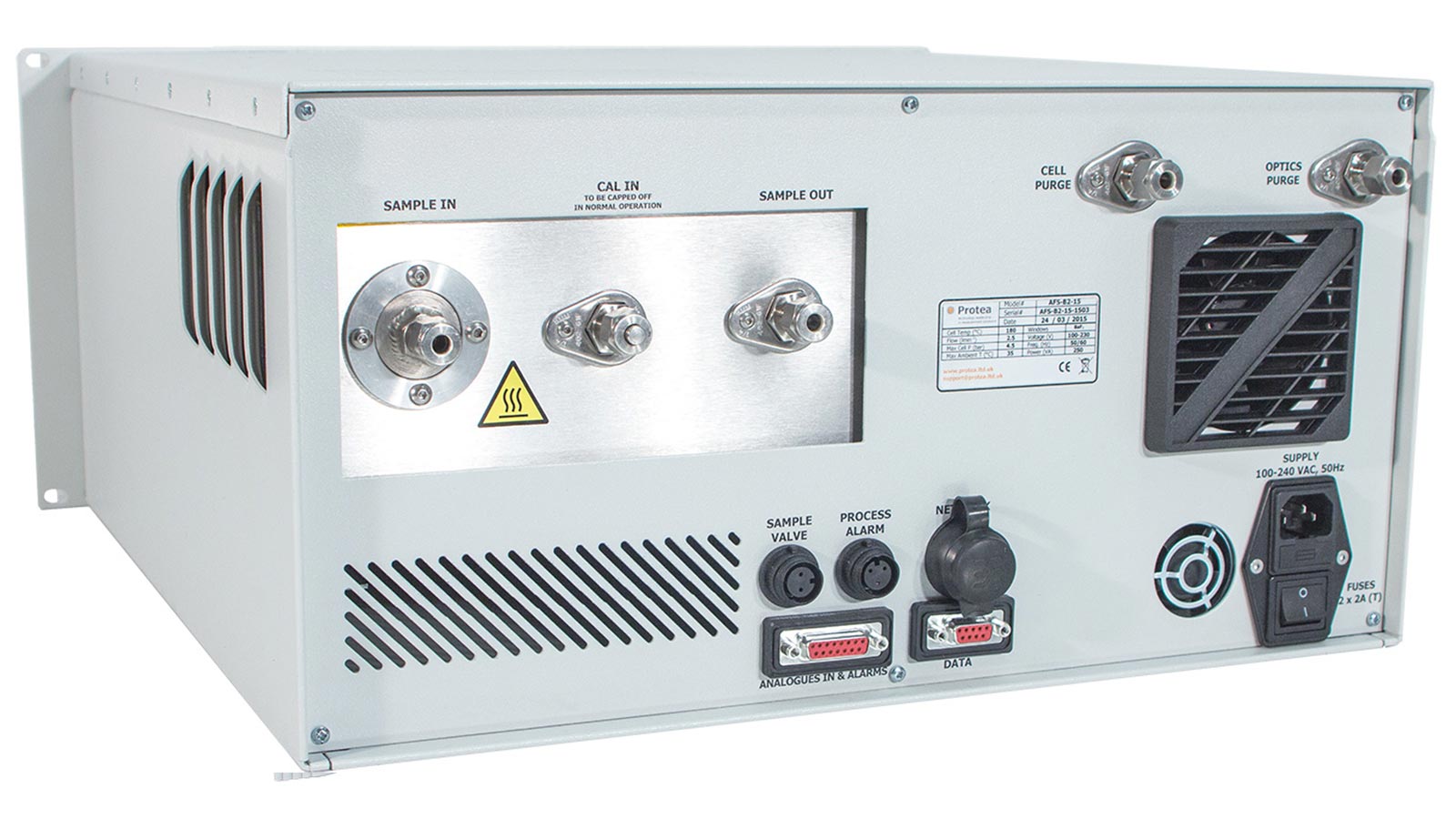

At the heart of system is the high-resolution, robust and proven FTIR spectrometer offering high signal throughput, low-noise and long lifetime of components. atmosFIR has been developed to incorporate the latest improvements and advantages in technology, The atmosFIR FTIR analyser contains an in-built sampling system and is designed for ppm-level emissions monitoring. The analyser can be used as a portable or bench-top unit as well as part of the installed CEM system.

atmosFIR CEM is a complete multigas analyser system using FTIR technology:

  • Waste Incineration Emissions monitoring
  • Combustion emissions from oil and gas
  • Core FTIR module available for integration
  • Meets the requirements of EN 15267-3, QAL1 and EN14181
atmosFIR CEM

atmosFIR CEM
Data Sheet

atmosFIR CEM MCERTS Certificate

atmosFIR CEM
MCERTS Certificate


Continuous Emissions Monitoring NDIR GFC Gas Analyser

atmosIRw CEM

AtmosIR is a hot, wet, extractive, multi-component analyser designed to monitor up to six gases simultaneously via the NDIR-GFC technique. Installing as an emissions monitoring system will ensure compliance with international performance standards. AtmosIR features Protea’s proven photometer, taken from our MCERTS approved P2000 analyser, combined with our hot/wet gas cell technology as found in our FTIR gas analysers.

AtmosIRw provides the gas analyser ready to install in a fixed, integrated Continuous Emission Monitoring (CEM) system. This includes all power and alarm for a heated sampling system, together with I/O for integration with plant control systems. Zero and span gases can be automatically triggered to validate gas measurements.

Developed using the latest advancements in Gas Filter Correlation (GFC) photometry, along with Protea’s proven technologies, atmosIR offers:

  • Low Cost of Ownership: Optimised for minimal operational costs.
  • Low Maintenance Requirements: Engineered for durability and reduced upkeep.
  • Advanced Software Options: The Protea P-HMI software enables precise calculation, display, and retransmission of gas concentrations.
  • Robust and Lightweight Design

Applications for atmosIR CEM include:

  • Small Waste Incineration Plants (SWIP)
  • Combustion emissions from oil and gas
  • Ammonia slip detection
  • Pulp and Paper
  • Crematoria Emissions Monitoring
  • Core GFC module available for integration

Contact Protea for more information on the atmosIR CEM.

atmosIRw

atmosIRw
Data Sheet


Continuous Emissions Monitoring FID

atmosFID Total VOC analyser

The atmosFID Total VOC Analyser is designed for Continuous Emissions Monitoring (CEM) of gaseous VOC emissions from a wide range of sources – waste incineration, combustion sources, paint shops and manufacturing processes. As a 19” rack analyser it can be provided in a complete fixed emissions system from Protea, or can be used as a standalone analyser.

With quick measurement time and a complete heated sample path at 300°C, the atmsoFID can also operate as a process control, indoor VOC detector or automotive emissions tester.

P2000 Series Continuous Emission Monitor With Protea Control Unit

FID Analyser
Data Sheet

MCERTS Certificate

atmosFID CEM
MCERTS Certificate

atmosFID Benefits and CEM Integration

atmosFID Benefits and
CEM Integration

atmosFID Total VOC Analyser can be operated together with the atmosFIR FTIR CEM for a complete gas CEM system.

  • Waste Incineration Emissions monitoring
  • Total VOC and Non-Methane Hydrocarbon measurement
  • Low certification range – 0-15mg/m3
  • Meets the requirements of EN 15267-3, QAL1 and EN14181

Continuous Emissions Monitoring TDL

Solus NH3 HCL Analyser

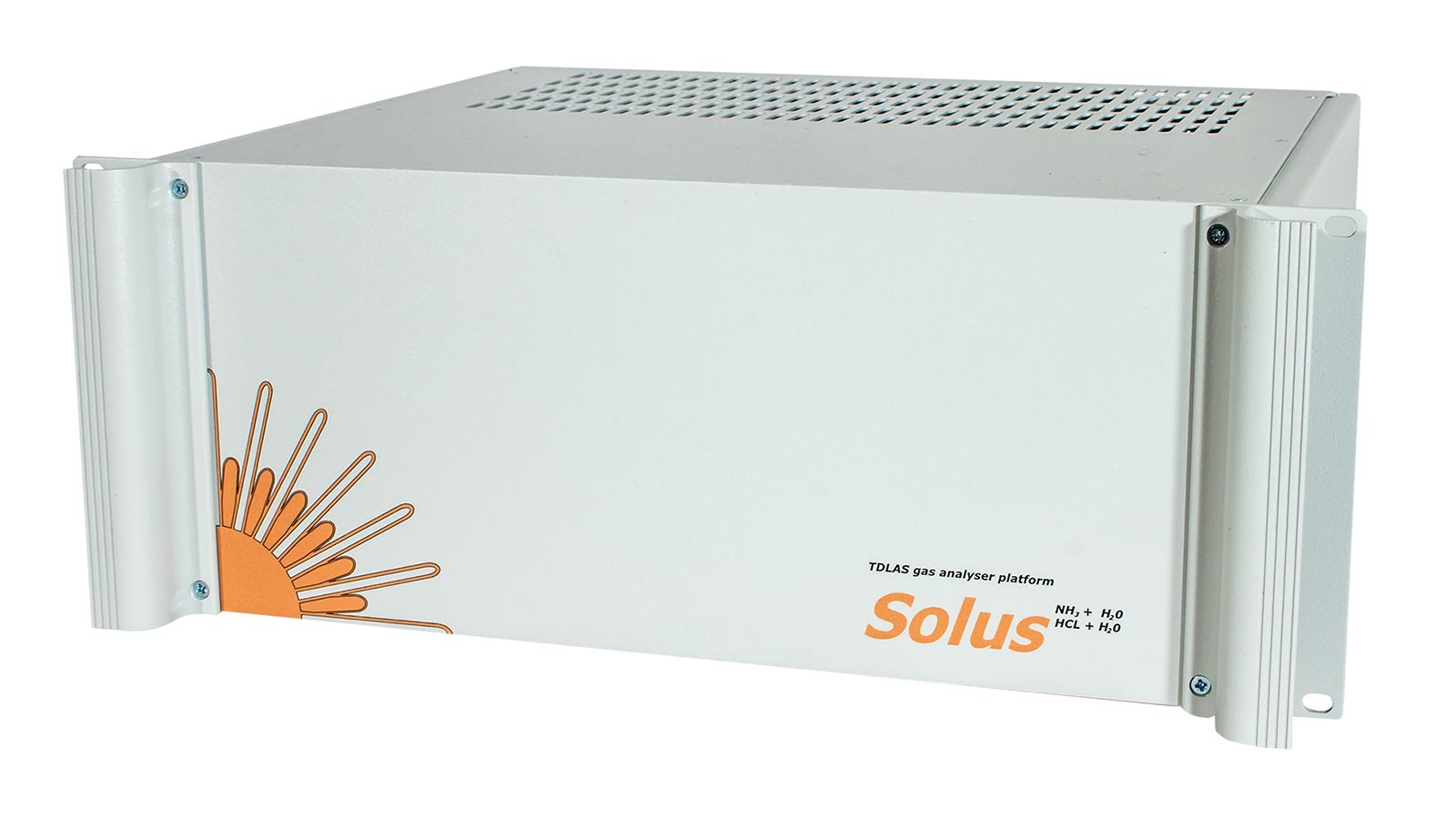

Introducing Protea's new range of laser gas analysers - Solus. The Solus platform represents an extension of Protea's spectroscopic gas analysis equipment into laser based technology, allowing for highly selective, quick response and low range measurements of 1 or 2 gases in a cost-effective, re-configurable package.

Solus utilises the latest in Tunable Laser Diode Absorption Spectroscopy (TDLAS), together with the best in micromachining technology, to deliver a precisely controlled narrow wavelength that can be tuned over a small range. The narrow linewidth allows for selection of precise spectral absorbance in the NIR region, free from cross-interferences of other absorbing gases. For some tuning ranges, a number of gases can be measured by tuning a single laser diode e.g. NH33 and H2O.

The Solus extractive TDLAS gas analyser range has been developed to incorporate the advantages in technology, including:

  • Very low cost of ownership and maintenance cost
  • Portable gas analysis
  • Reconfigurable for multi-gases with change of laser diode
  • Robust and light, including the latest in fabrication materials such as carbon fibre chassis and patent pending insulation design
  • Simple to use, quick to deploy and no need for consumable zero or span gases
Solus NH3 HCL Analyser

Solus NH3 HCL Analyser
Data Sheet


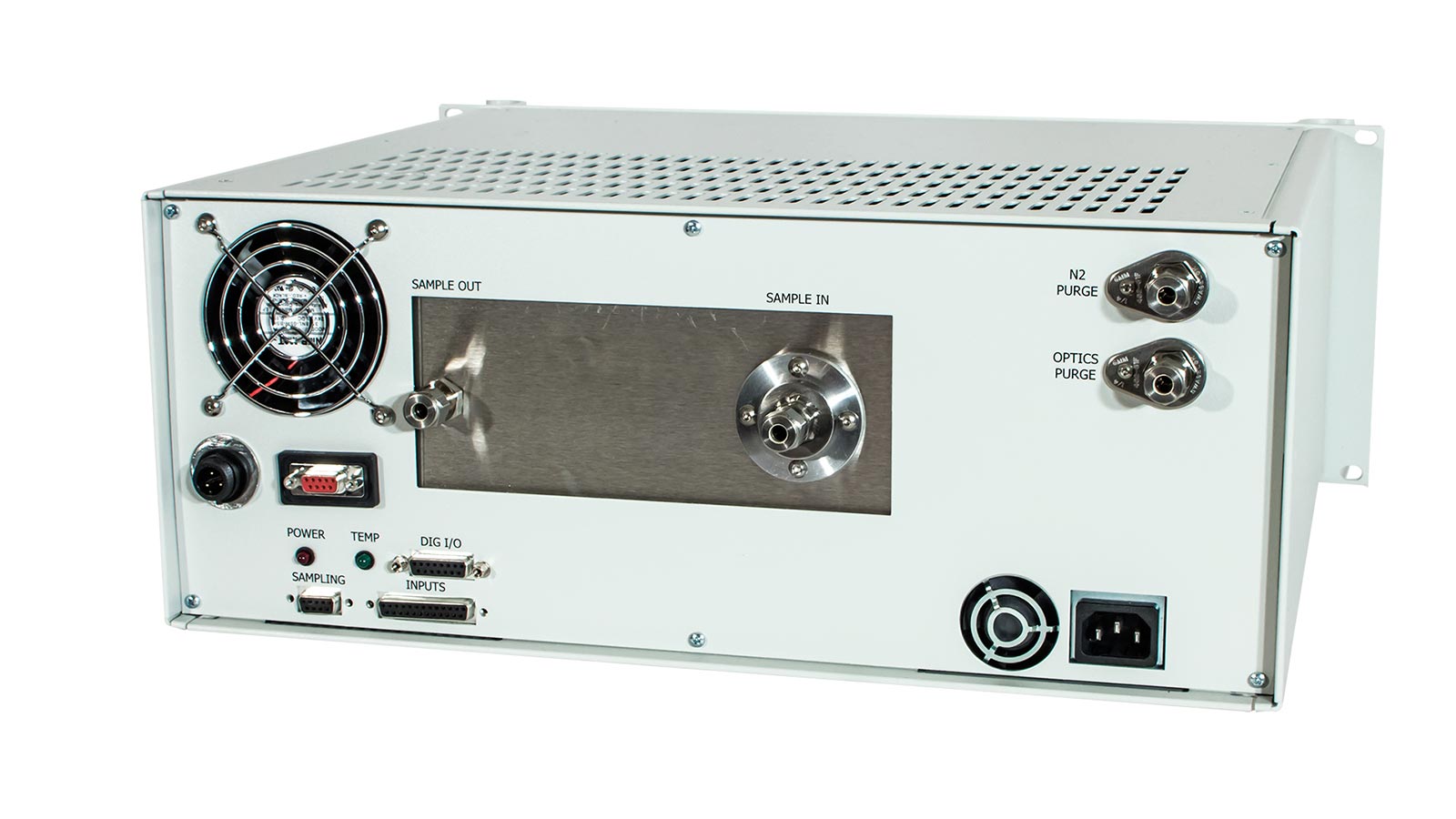

atmosFIR FTIR Gas Analyser

For Integration into CEM

The core atmosFIR 19” rack multigas analyser that is provided in the atmosFIR CEM system can be removed and installed in an system by OEMs or system integrator. The analyser contains all internal sampling control, O2 sensor, purge valves. At 5U with in-built PSU, the FTIR analyser can be powered and connected relatively easily.

Protea’s FTIR control software allows for 3rd party software control via an OEM or integrated over various protocols, so front-end operations can be designed that enabled requirement of localisation.

Contact Protea for more information on using our analyser modules as an approved OEM.

atmosFIR FTIR Gas Analyser

atmosFIR FTIR Gas Analyser
Data Sheet


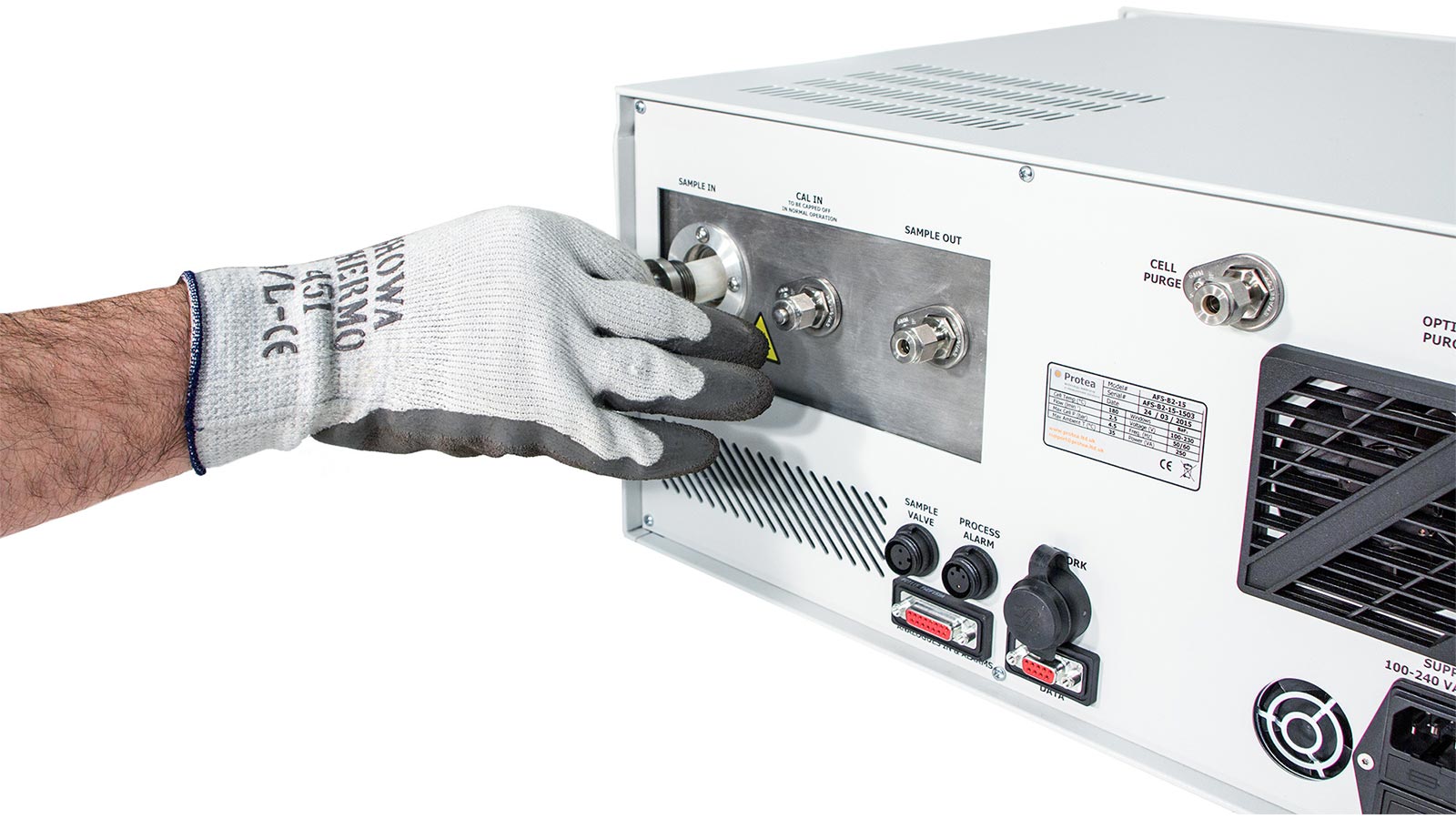

atmosIR GFC Hot Wet Gas Analyser

For integration into CEM

AtmosIR is a hot, wet, extractive, multi-component analyser designed to monitor up to six gases simultaneously via the NDIR-GFC technique. AtmosIR is a 19” rack mountable analyser featuring Protea’s proven photometer, taken from our MCERTS approved P2000 analyser, combined with our hot/wet gas cell technology as found in our FTIR gas analysers.

AtmosIR is provided ready to install in a fixed cabinet system by Protea, an OEM or system integrator. This includes all power and alarm for a heated sampling system, together with I/O for integration with plant control systems. Zero and span gases can be automatically triggered to validate gas measurements.

The Protea P-HMI software enables precise calculation, display, and retransmission of gas concentrations. This can be run on an integrators local PC/HMI.

Contact Protea for more information on the atmosIR CEM.

atmosIR GFC Hot Wet Gas Analyser

atmosIR GFC Hot Wet Gas Analyser
Data Sheet
