FTIR Gas Analysers
Protea’s range of Fourier Transform Infrared (FTIR) Gas Analysers allows for the measurement of nearly any gas with one instrument. A FTIR gas analyser collects a full infrared spectrum continuously, allowing for hundreds of gases to be detected and measured at once. Changes are only needed to software calibration files to measure new gases.
Our FTIR gas analysers represent the highest levels of performance and accuracy in industrial and research gas measurements. Protea offers a number of standard FTIR configurations that are designed for specific applications including:
- Continuous Emissions Monitoring (CEM) FTIR
- Online process FTIR gas analysis
- High concentration FTIR systems
- Very low concentration ppb FTIR analysers
- Portable FTIR gas analysers
Protea was the first company in the UK to use FTIR gas analysers for mobile stack emissions testing. Protea has been able to develop our instrumentation with an understanding of the needs of our end-users and customers. In-house development of software algorithms, FTIR gas cell optics and sampling system control systems allows us to provide not only the high performance FTIR analyser but the complete measurement system around it.

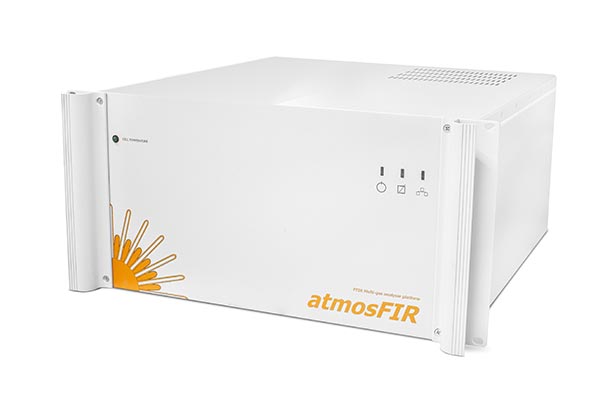

atmosFIR
atmosFIR is the successor to Protea's previous emissions monitoring FTIR systems, keeping all the features that users found valuable in achieving their measurement results.
atmosFIRt
atmosFIRt is the latest generation of FTIR gas analyser technology from Protea in a portable or mobile form.
atmosFIRi
atmosFIRi is a new concept in FTIR. The unit is designed as a general gas analyser that is simple to use, portable and a very low cost product that provides real-time online measurement suitable for plant systems.
atmosFIRw
atmosFIR is the latest generation of gas analyser technology from Protea. The atmosFIR system improves upon previous FTIR technology and represents one of the most cost-effective and flexible analytical products on the market today.
ATEX Gas Analyser
atmosFIR EX is an ATEX certified gas analyser system for measurement of industrial gases in a Zone 1 or Zone 2 area, providing a complete EX certified gas measurement system that meets both the sampling of non-flammable and flammable gases, utilizing Protea’s multigas atmosFIR FTIR gas analyser platform.
atmosFIRa
20 metre pathlength FTIR gas analyser for low concentration laboratory or process measurements. Configurable with 3 detector types for ppb level gas detection and reporting.
Fast Scanning FTIR
Protea can provide fixed process or research systems using fast scanning FTIR and custom sampling system to achieve quickest response times.

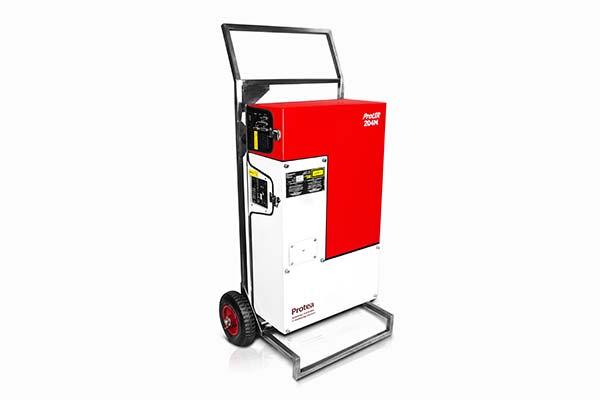

ProtIR 204M
The 204M is a transportable CEM based on FTIR technology.
